• Wheels, 4 -16" x 6.5" (40.6 cm x 16.5 cm), 8-lug painted steel, heavy-duty (Only available with (R04) single rear wheel configuration.)
• Tires, front LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Tires, rear LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, single (Not available with (C7A) 10,000 lbs. (4536 kg) GVWR or (C7N) 12,300 lbs. (5579 kg.) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, dual halogen composite
• Flasher, heavy duty light emitting diode (LED)
• Glass, Solar-Ray light-tinted, all windows
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio or (YF1) RV Package.)
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first) (Included and only available with (UE1) OnStar. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)

• Mirror, inside rearview (Included and only available with (UVC) Rear Vision Camera.)
• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• Power outlet, 120-volt
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Heater and defogger with front and side window defoggers
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handles, driver and right-front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Airbags, frontal, driver and front passenger (Included and only available with (ZX2) driver and front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, driver and right-front passenger, seat-mounted side-impact and roof-rail side-impact (Included and only available with (C4M) 9900 lb. (4490 kg) GVWR or (C7A) 10,000 lb. (4536 kg) GVWR. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Not available with (YF2) Ambulance Package or (UXZ) radio provisions only audio system. Included with (FDR) Fleet Daily Rental order types. Fleet orders receive a 3-month trial. Visit onstar.com for coverage map, details and system limitations. Services vary by model.)
• Chevrolet Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more (Included and only available with (UE1) OnStar. Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
• Rear Vision Camera
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

SMOKER'S PACKAGE

• includes ashtray and lighter

3500 VAN PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

ENGINE, VORTEC 6.0L V8

• (341 hp [254.3 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (Includes external oil cooler.

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

BODY, STANDARD

• (STD)

DRIVER CONVENIENCE PACKAGE

• includes Tilt-Wheel and (K34) cruise control

CONSOLE, ENGINE COVER

• with swing-out storage bin

TIRES, REAR LT225/75R16E ALL-SEASON, BLACKWALL

• (STD)

TIRES, FRONT LT225/75R16E ALL-SEASON, BLACKWALL

• (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

GVWR, 12,300 LBS. (5579 KG)

• (Includes (R05) dual rear wheel configuration.

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking
• and Tap-Up/Tap-Down Driver Shift Control

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• SMOKER'S PACKAGE includes ashtray and lighter
• CRUISE CONTROL
• 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• ENGINE VORTEC 6.0L V8 (341 hp [254.3 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (Includes external oil cooler.
• REAR AXLE 3.73 RATIO
• LICENSE PLATE KIT FRONT
• WHEEL CONFIGURATION REAR DUAL
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• BODY STANDARD (STD)
• WHEELS 6 - 16 X 6.5 (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• CONSOLE ENGINE COVER with swing-out storage bin
• PAINT SOLID
• TIRES REAR LT225/75R16E ALL-SEASON BLACKWALL (STD)
• TIRES FRONT LT225/75R16E ALL-SEASON BLACKWALL (STD)
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• GVWR 12 300 LBS. (5579 KG) (Includes (R05) dual rear wheel configuration.
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• WiFi Hotspot
• Bucket Seats
• A/C
• Bucket Seats
• Power Outlet
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch
• Back-Up Camera
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3021
• Curb Weight - Rear (lbs): 1680
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 13000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHF
• Front Tire Order Code: XLP
• Rear Tire Order Code: YHF
• Rear Tire Order Code: YLP
• Front Tire Size: LT225/75R16E
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT225/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2335
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 2150
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159
• Length, Overall (in): 266.7
• Width, Max w/o mirrors (in): 94.53
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 82.9
• Overhang, Front (in): 39.7
• Front Bumper to Back of Cab (in): 98.7
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.5
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.8
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Summary

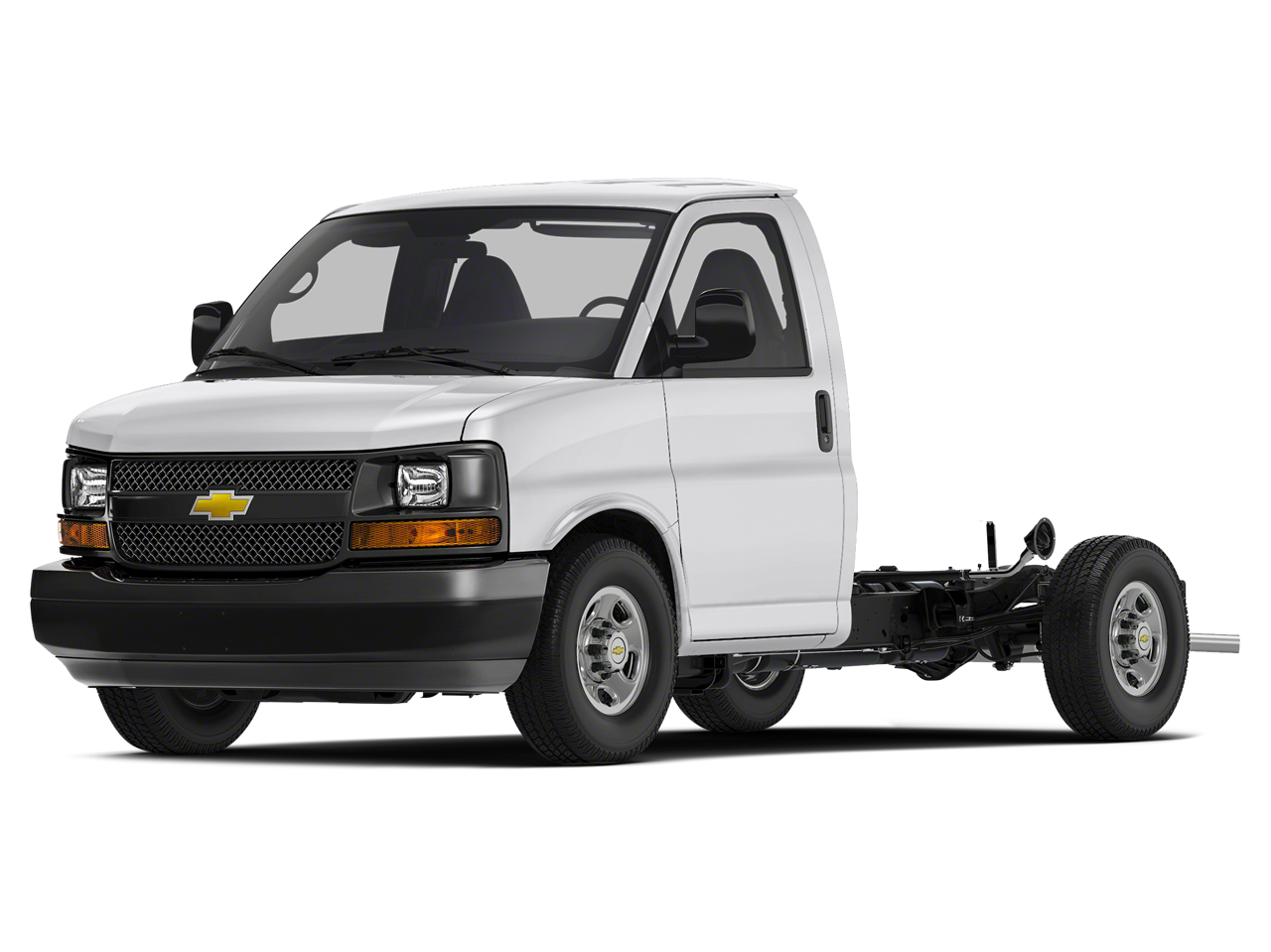

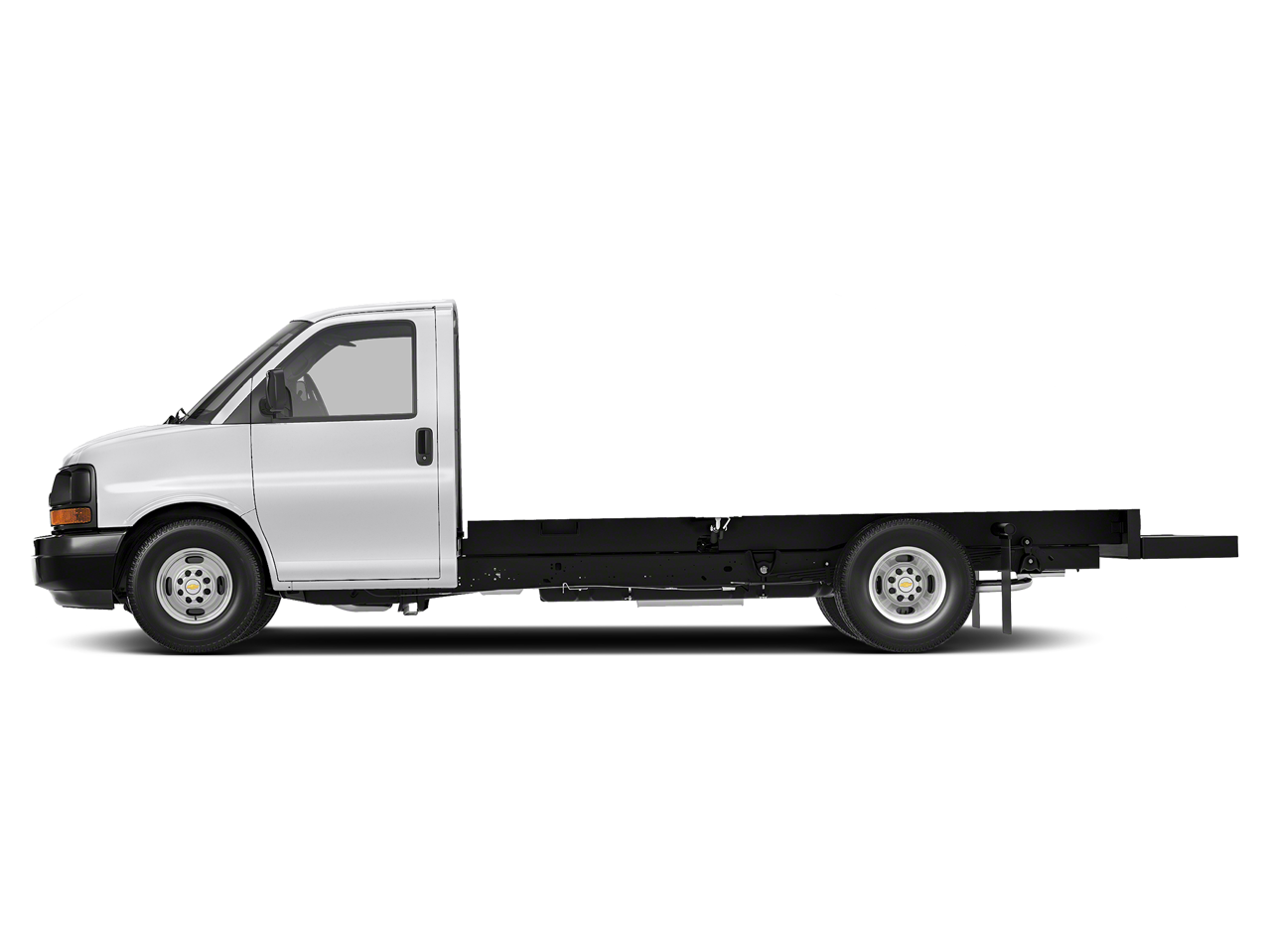

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
