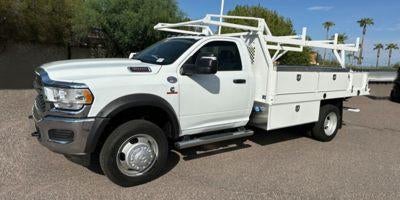

2026 RAM 5500 Chassis Tradesman 4x4 Reg Cab 120" CA 204.5" WB

Available For Sale
  • $80,449 FINAL PRICE
  • $79,950
  • Our Low Doc Fee: +$499
  • Final Price $80,449
  • Disclaimers
  • Request Information

Visit our Store

Vehicle Information

VIN: 3C7WRNDL6TG298333
Stock #: R7924
Model Code: DP0L66
  • Body Style 2 Door Cab; Regular; Extra Long
  • Exterior Color Bright White Clear Coat
  • Engine 6 L
  • Transmission Automatic
  • Fuel Type Diesel

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.

All Features

  • 4.44 Axle Ratio
  • GVWR: 18,000 lbs
  • Heavy-Duty Truck Federal Emissions
  • Power Take-Off Right/Left
  • Electronic Transfer Case
  • Part-Time Four-Wheel Drive
  • 730CCA Maintenance-Free Battery w/Run Down Protection
  • 220 Amp Alternator
  • Towing Equipment -inc: Trailer Sway Control
  • Trailer Wiring Harness
  • Transfer Case Skid Plate Shield
  • 10220# Maximum Payload
  • HD Gas-Pressurized Shock Absorbers
  • Front Anti-Roll Bar and Rear HD Anti-Roll Bar
  • Hydraulic Power-Assist Steering
  • 52 Gal. Fuel Tank
  • Single Stainless Steel Exhaust
  • Dual Rear Wheels
  • Auto Locking Hubs
  • Leading Link Front Suspension w/Coil Springs
  • Solid Axle Rear Suspension w/Leaf Springs
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs
  • Upfitter Switches
  • Mechanical Limited Slip Differential
  • Wheels: 19.5" x 6.0" Black Painted Steel
  • Tires: 225/70R19.5G FT All Position, RR Traction
  • Wheels w/Hub Covers
  • Black Front Bumper w/2 Tow Hooks
  • Black Fender Flares
  • Black Side Windows Trim and Black Front Windshield Trim
  • Black Door Handles
  • Manual Side Mirrors w/Convex Spotter
  • Black Exterior Mirrors
  • Manual Telescoping Mirrors
  • Manual Folding Exterior Mirrors
  • Fixed Rear Window
  • Light Tinted Glass
  • Variable Intermittent Wipers
  • Galvanized Steel/Aluminum Panels
  • Black Grille
  • Auto On/Off Reflector Led Low/High Beam Daytime Running Headlamps w/Delay-Off
  • Front Fog Lamps
  • Cab Clearance Lights
  • Radio: Uconnect 5 w/8.4" Display
  • Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Aux Audio Input Jack, Voice Activation, Radio Data System and External Memory Control
  • Streaming Audio
  • Integrated Roof Antenna
  • 4 Speakers
  • GPS Antenna Input
  • 2 LCD Monitors In The Front
  • 40-20-40 Bench Folding Driver Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
  • Driver Seat
  • Manual Adjust 4-Way Driver Seat
  • 40-20-40 Bench Folding Passenger Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
  • Passenger Seat
  • Manual Adjust 4-Way Front Passenger Seat
  • Manual Tilt Steering Column
  • Voice Recorder
  • Mobile Hotspot Internet Access
  • Illuminated Front Cupholder
  • Proximity Key For Push Button Start Only
  • Cruise Control w/Steering Wheel Controls
  • Adaptive Cruise Control
  • Manual Air Conditioning
  • Glove Box
  • Full Cloth Headliner
  • Urethane Gear Shifter Material
  • Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents
  • HD Vinyl 40/20/40 Split Bench Seat
  • Day-Night Rearview Mirror
  • Passenger Visor Vanity Mirror
  • Mini Overhead Console and 2 12V DC Power Outlets
  • Front Map Lights
  • Fade-To-Off Interior Lighting
  • Full Vinyl/Rubber Floor Covering
  • RAM Connect Tracker System
  • Global Telematics Box Module (TBM)
  • Google Android Auto
  • Apple CarPlay
  • Remote USB Port - Charge Only
  • Integrated Voice Command w/Bluetooth®
  • Connectivity - US/Canada
  • 4G LTE Wi-Fi Hot Spot
  • For Details, Visit DriveUconnect.com
  • Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins
  • Delayed Accessory Power
  • Manual 1st Row Windows
  • Driver Information Center
  • Redundant Digital Speedometer
  • Analog Appearance
  • Temperature & Compass Gauge
  • Manual Adjustable Front Head Restraints
  • Armrests w/Storage
  • Seats w/Vinyl Back Material
  • 40/20/40 Split Bench Seat
  • Front Armrest w/Cupholders
  • Sentry Key Immobilizer
  • 2 12V DC Power Outlets
  • Air Filtration
  • Electronic Stability Control (ESC)
  • ABS And Driveline Traction Control
  • Side Impact Beams
  • RAM Connect Emergency Sos Capability
  • Forward Collision Warning-Plus
  • Collision Mitigation-Front
  • Dual Stage Driver And Passenger Front Airbags
  • Airbag Occupancy Sensor
  • Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners

QUICK ORDER PACKAGE 25A TRADESMAN

  • Engine: 6.7L I6 Cummins Turbo Diesel
  • Transmission: 8-Speed TorqueFlite HD Automatic (DFM)

COLD WEATHER GROUP

  • Engine Block Heater
  • MOPAR Winter Front Grille Cover

CHROME APPEARANCE GROUP

  • Chrome Grille Surround
  • Matte Black Mesh w/Chrome Grille
  • Wheels: 19.5" x 6.0" Steel
  • Center Hub
  • Bright Front Bumper

ENGINE: 6.7L I6 CUMMINS TURBO DIESEL

  • Selective Catalytic Reduction (Urea)
  • Dual 730 Amp Maintenance Free Batteries
  • Clean Idle Emissions Label
  • Cummins Turbo Diesel Badge
  • Current Generation Engine Controller
  • Smart Diesel Exhaust Brake
  • Supplemental Heater
  • B-20 Bio Diesel Capability
  • GVWR: 19
  • 500 lbs

FULL SIZE SPARE TIRE

  • 19.5" Steel Spare Wheel

  • TRANSMISSION: 8-SPEED TORQUEFLITE HD AUTOMATIC (DFM)

    BLACK TUBULAR SIDE STEPS

    50 STATE EMISSIONS

    52 & 22 GALLON DUAL FUEL TANKS

    BRIGHT WHITE CLEARCOAT

    PARKVIEW REAR BACK-UP CAMERA

    2 ADDITIONAL KEY FOBS

  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 1460
    • Cold Cranking Amps @ 0° F (Primary): 730
    • Cold Cranking Amps @ 0° F (2nd): 1460
    • Cold Cranking Amps @ 0° F (2nd): 730
    • Maximum Alternator Capacity (amps): 220
  • Weight Information
    • Base Curb Weight (lbs): 8631
    • Base Curb Weight (lbs): 7777
    • Gross Axle Wt Rating - Front (lbs): 7000
    • Gross Axle Wt Rating - Front (lbs): 6500
    • Gross Axle Wt Rating - Rear (lbs): 13500
    • Curb Weight - Front (lbs): 4460
    • Curb Weight - Rear (lbs): 3317
    • Gross Vehicle Weight Rating Cap (lbs): 18000
    • Gross Combined Wt Rating (lbs): 37500
    • Gross Combined Wt Rating (lbs): 26000
  • Trailering
    • Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
    • Dead Weight Hitch - Max Tongue Wt. (lbs): 500
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 28720
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 18070
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 2872
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 1807
    • Maximum Trailering Capacity (lbs): 28720
    • Maximum Trailering Capacity (lbs): 18070
  • Suspension
    • Suspension Type - Front: Leading Link
    • Suspension Type - Rear: Leaf
    • Spring Capacity - Front (lbs): 7000
    • Spring Capacity - Front (lbs): 6500
    • Spring Capacity - Rear (lbs): 13500
    • Axle Type - Front: Non-Independent
    • Axle Type - Rear: Rigid Axle
    • Axle Capacity - Front (lbs): 7000
    • Axle Capacity - Rear (lbs): 13500
    • Axle Ratio (:1) - Front: 4.44
    • Axle Ratio (:1) - Rear: 4.44
  • Brakes
    • Brake Type: 4-Wheel Disc
    • Brake ABS System: 4-Wheel
    • Brake ABS System (Second Line): 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Disc - Rear (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 15.3
    • Rear Brake Rotor Diam x Thickness (in): 15.3
  • Tires
    • Front Tire Order Code: TAJ
    • Rear Tire Order Code: TAJ
    • Spare Tire Order Code: TBB
    • Front Tire Size: 225/70R19.5
    • Rear Tire Size: 225/70R19.5
    • Spare Tire Size: Full-Size
    • Front Tire Capacity (lbs): 7940
    • Rear Tire Capacity (lbs): 15000
    • Revolutions/Mile @ 45 mph - Front: 651
    • Revolutions/Mile @ 45 mph - Rear: 650
  • Wheels
    • Front Wheel Size (in): 19.5 X 6
    • Rear Wheel Size (in): 19.5 X 6
    • Spare Wheel Size (in): Full-Size
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Spare Wheel Material: Steel
  • Steering
    • Steering Type: Re-Circulating Ball
    • Turning Diameter - Curb to Curb (ft): 61.5
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 52
    • Aux Fuel Tank Capacity, Approx (gal): 22
  • Exterior Dimensions
    • Wheelbase (in): 204.5
    • Length, Overall (in): 296.3
    • Width, Max w/o mirrors (in): 86.9
    • Height, Overall (in): 81.4
    • Overhang, Front (in): 40.8
    • Overhang, Rear w/o bumper (in): 51.1
    • Cab to Axle (in): 120.2
    • Cab to End of Frame (in): 171.1
    • Ground Clearance, Front (in): 8
    • Ground Clearance, Rear (in): 8
  • Interior Dimensions
    • Passenger Capacity: 3
    • Front Head Room (in): 39.8
    • Front Leg Room (in): 40.9
    • Front Shoulder Room (in): 65.9
    • Front Hip Room (in): 62.9
  • Summary
    • Vehicle Name: Ram 5500 Chassis Cab
    • Body Style: Regular Cab
    • Body Code: H

Warranty

  • Basic Warranty: 36 months / 36,000 miles
  • Drivetrain Warranty: 120 months / 100,000 miles
  • Corrosion Warranty: 60 months / 100,000 miles
  • Roadside Assistance Warranty: 60 months / 100,000 miles
